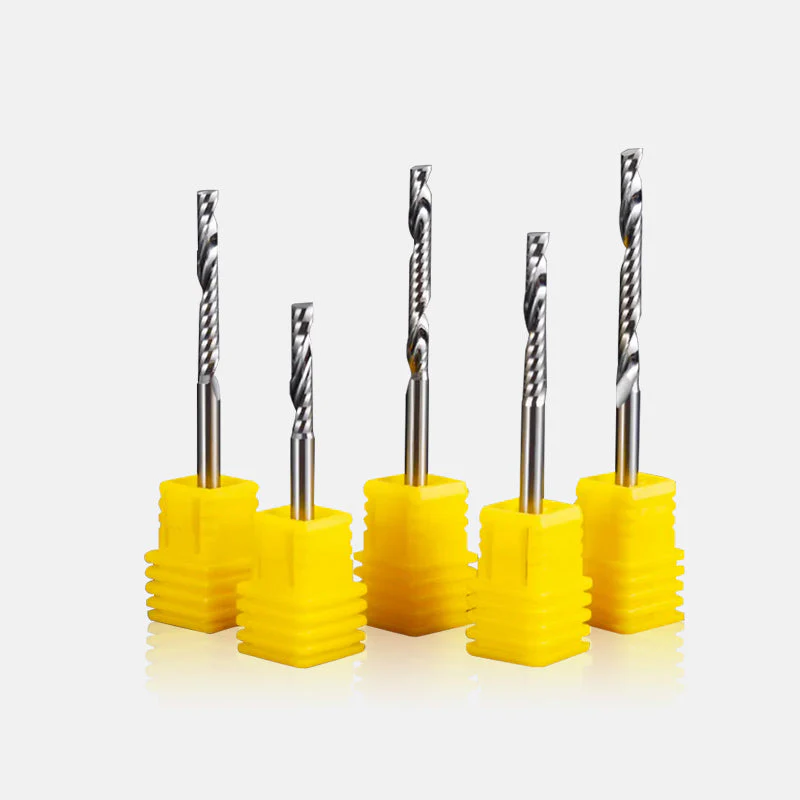

Spiral 'O' Single Flute Bit - 1/8″ Shank
HomeStore

Spiral 'O' Single Flute Bit - 1/8″ Shank

Spiral 'O' Single Flute Bit - 1/8″ Shank

The Spiral 'O' Single Flute Bit allows for superior chip evacuation, reducing the risk of chip re-cutting and ensuring a cleaner cut.

Specifications:
Shank Diameter: 3.175mm
Total Length: 38mm or more
Material: Solid Carbide

Applications:
Sheet/Plate/Block Contour cutting, Face cleaning, Pocket milling, and Hole boring, etc.

Materials:
Wood, Plastics, Composite materials, etc.


Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools Aluminum Brass Carbon Fiber Copper Hardwood PCB Plastic Softwood
1*3mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		- RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		RPM:10000
Feed:1000
PFeed:300
DOC:1
1.5*8mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		- RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		RPM:10000
Feed:1000
PFeed:300
DOC:1
2*12mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		- RPM:10000
Feed:1000
PFeed:300
DOC:0.5 		RPM:10000
Feed:1000
PFeed:300
DOC:1
2.5*15mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:1 		- RPM:10000
Feed:1000
PFeed:300
DOC:1 		RPM:10000
Feed:1000
PFeed:300
DOC:2
3.175*17mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:1 		- RPM:10000
Feed:1000
PFeed:300
DOC:1 		RPM:10000
Feed:1000
PFeed:300
DOC:2
3.175*25mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:1 		- RPM:10000
Feed:1000
PFeed:300
DOC:1 		RPM:10000
Feed:1000
PFeed:300
DOC:2
3.175*32mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:1 		- RPM:10000
Feed:1000
PFeed:300
DOC:1 		RPM:10000
Feed:1000
PFeed:300
DOC:2
3.175*42mm Flat End - - - - RPM:10000
Feed:1000
PFeed:300
DOC:1 		- RPM:10000
Feed:1000
PFeed:300
DOC:1 		RPM:10000
Feed:1000
PFeed:300
DOC:2
Select Specs (Cutting Diameter * Cutting Length)
From $1.23

Original: $3.52

-65%
Spiral 'O' Single Flute Bit - 1/8″ Shank—

$3.52

$1.23

More Images

Spiral 'O' Single Flute Bit - 1/8″ Shank - Image 2

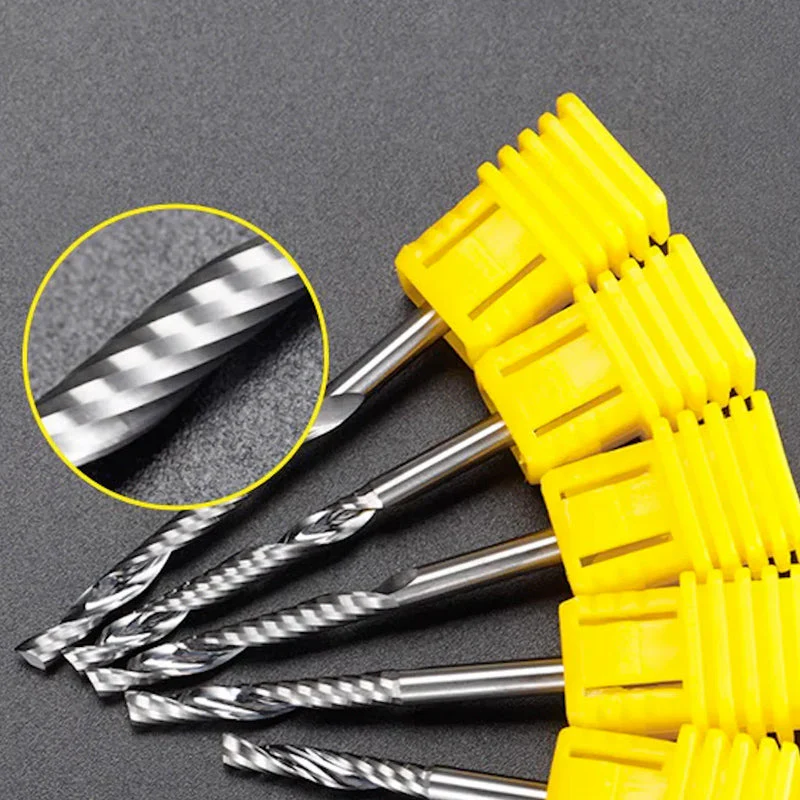

Spiral 'O' Single Flute Bit - 1/8″ Shank - Image 3

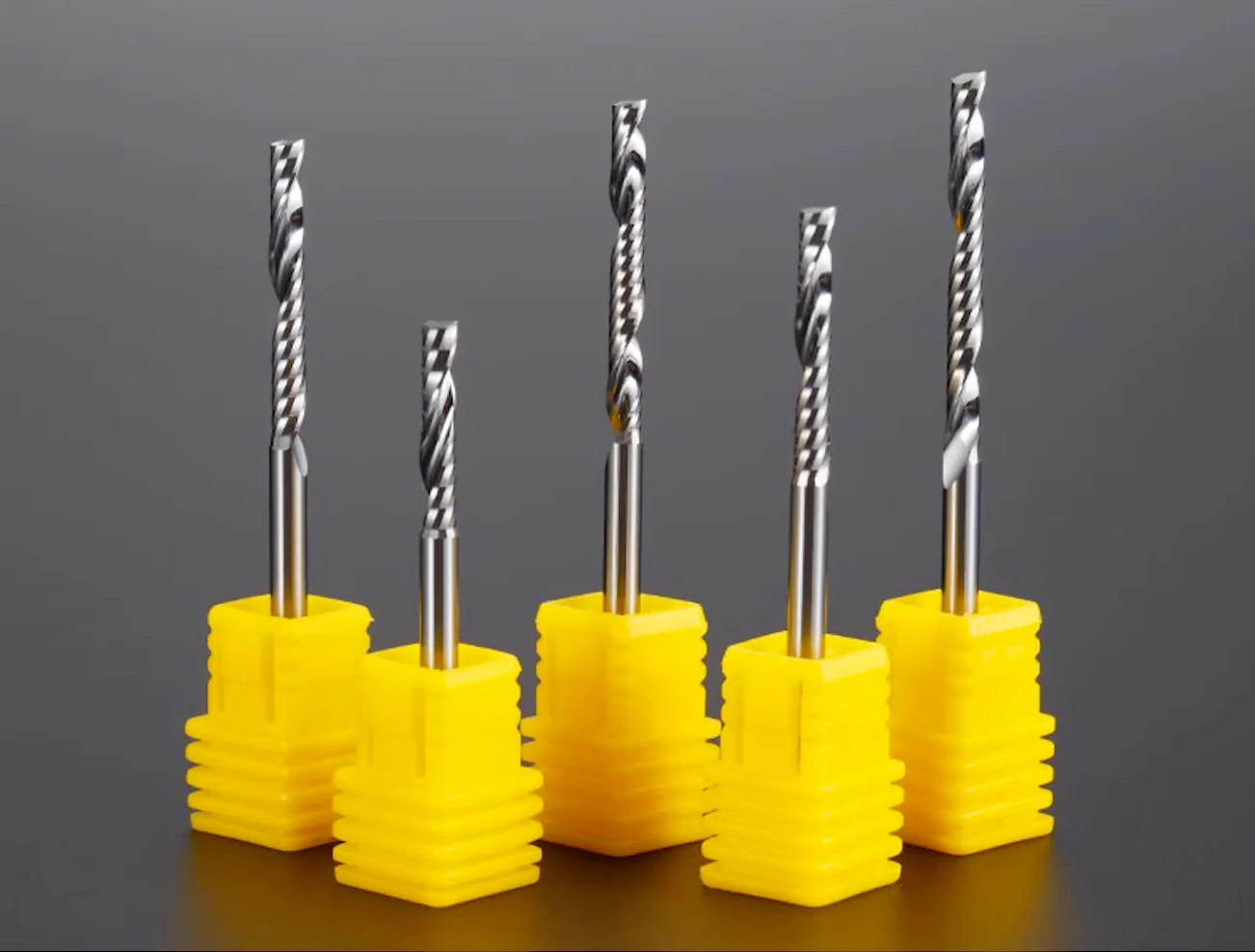

Spiral 'O' Single Flute Bit - 1/8″ Shank - Image 4
